How backup cameras really work and how to use them safely

Reverse cameras have moved from luxury extras to everyday equipment, and many drivers now rely on them whenever they maneuver in tight spaces. Yet a surprising number of people are unsure how the technology actually works or how much they can trust the view on screen.

Understanding the strengths and limits of these systems can make daily driving easier and also prevent avoidable low speed crashes and injuries.

What a backup camera sees and what it does not

A typical reverse camera is mounted near the rear license plate or tailgate handle and points slightly downward. The lens is wide angle, so it captures a broad view of the area directly behind the car, usually including the bumper, the ground, and nearby obstacles.

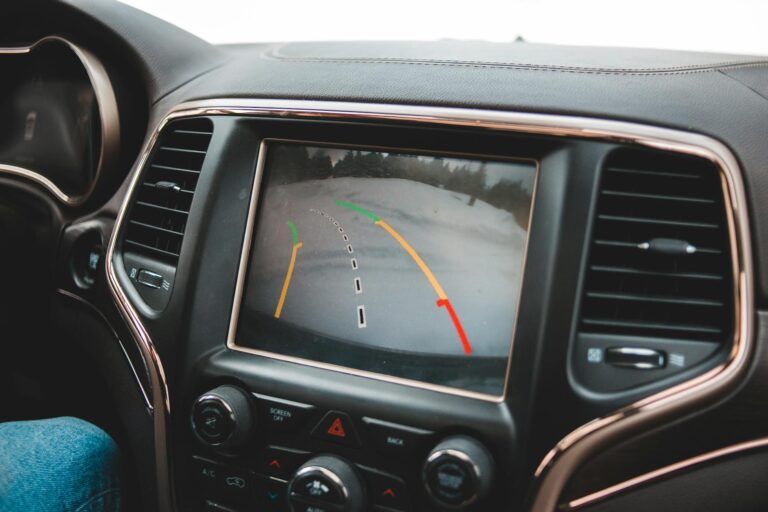

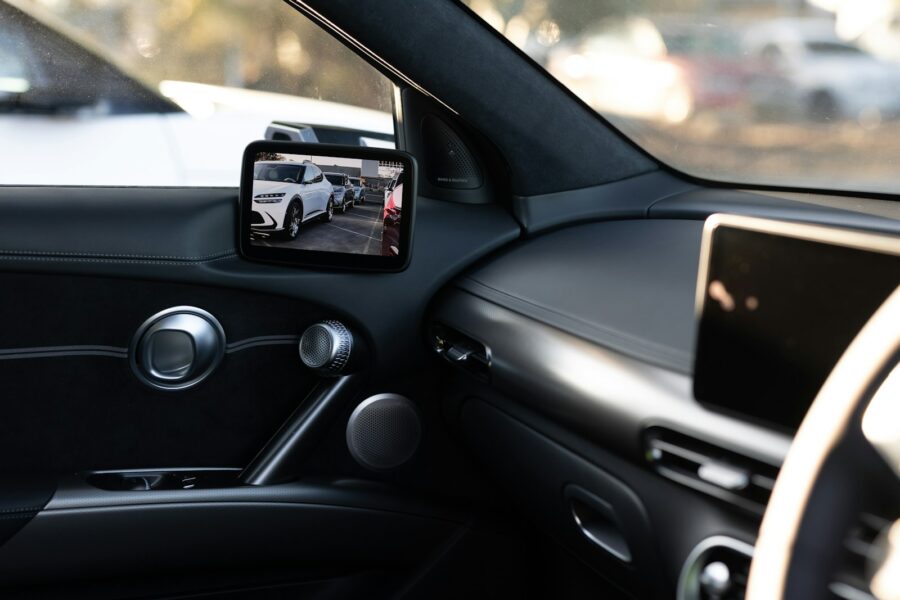

That view is sent to a screen on the dashboard or in the mirror. Colored lines are added digitally to show where the car would travel if you kept the steering wheel in its current position. Some systems also shade areas red, yellow, or green to indicate distance from an object.

Why distances can feel distorted

Because the camera uses a wide angle lens, objects near the edges of the screen may look stretched or farther away than they really are. The perspective is not the same as what you see in a mirror or with your own eyes turning around in the seat.

Most manufacturers place small marks or zones on the image to help with judging distance, but these are only a guide. The exact distance that each color band represents can vary by model, so it is worth checking your manual and testing in an empty space to get a feel for it.

Dynamic guidelines versus fixed lines

Many newer cars offer dynamic guidelines that move when you turn the steering wheel. These curved lines suggest the path your car will take if you keep your current steering angle while reversing.

Other systems show fixed, straight lines that do not react to steering input. These can still help with aligning to a space or gauging distance, but they do not predict your path, so you must mentally match the lines with how much you are turning the wheel.

Blind spots that still remain

Despite the helpful view, there are important blind spots. Very low objects or uneven surfaces can fall below the field of view. Items to the far side of the rear corners can also be hard to see if the lens is centered on the vehicle.

In addition, backup cameras do not replace side mirrors. They provide depth behind the car, while mirrors help with cross traffic, pedestrians approaching from the side, and cyclists who may be about to pass behind you.

Best practice: a combined routine, not a shortcut

The safest way to use a backup camera is to treat it as part of a routine instead of a shortcut. Before shifting into reverse, do a 360 degree check: mirrors, over your shoulder, and a quick look behind the car if visibility is poor or children are nearby.

Once you start reversing, glance between the screen, mirrors, and your surroundings rather than staring only at the display. Move slowly enough that you can stop the moment something unexpected appears on the screen or at the edge of your vision.

Tips for everyday maneuvers

When backing into a space, use the guidelines to center the car between the lines on the ground. Keep the wheel straight until the side guidelines align, then make small steering corrections rather than large, fast turns that can surprise you on screen.

For parallel maneuvers, the camera is especially useful for checking the distance to the car behind and for avoiding contact with a curb or low barrier. Use side mirrors for judging side clearance, and the camera for straight back distance in the last part of the maneuver.

Keeping the camera reliable

A dirty lens can turn a clear image into a blurry or misleading one. Dust, mud, snow, and road salt build up quickly on the rear of a car, so it is good habit to wipe the lens gently with a soft cloth whenever you clean your windows or fill up with fuel.

If the image flickers, shows unusual colors, or fails altogether, have it inspected. Problems might come from a loose connection, cracked lens, or fault in the head unit. Until it is fixed, fall back on mirrors and direct observation, and give yourself extra space when reversing.

Extra assistance: sensors and alerts

Many cars pair the camera with ultrasonic sensors that beep as you approach an object. These can detect items that are too low or too high for the camera to show clearly, and they are particularly helpful in dim light or bad weather.

However, they are also limited. Very narrow poles, soft materials, or uneven ground might not trigger a sensor at the expected distance. Treat beeps and on screen warnings as a prompt to check again, not as an automatic stop signal you can fully trust without looking.

Adapting when you drive another car

Once you become used to a backup camera, reversing an older car without one can feel uncomfortable. When you change cars, give yourself time to adjust. Rehearse low speed maneuvers in a quiet area so you rediscover how much space you really need.

If you regularly share cars in a family, pay attention to how each system behaves. Camera position, guideline colors, and sensor sensitivity can differ, so a short familiarization drive is worthwhile before relying on the screen in a crowded area.

Using technology without losing attention

Reverse cameras are one of the most practical modern driving aids, especially in busy urban areas and crowded driveways. They are at their best when combined with careful speed, frequent checks around the car, and a mindset that expects the unexpected.

By understanding what the system shows, what it cannot, and how to build it into a simple reversing routine, you can make daily maneuvers easier while also reducing the risk of costly or tragic mistakes at low speed.
