How to set up a simple 5.1 home theater with an AV receiver in your living room

Many people buy a TV and a speaker bar, then stop there. If you enjoy movies, sports or games, a basic 5.1 layout with an AV receiver can feel much closer to a cinema, even in an ordinary living room.

You do not need designer furniture or professional installers. With a modest budget and some planning, you can build a neat layout that is easy to use for everyone at home.

What a 5.1 layout with an AV receiver actually gives you

In a 5.1 arrangement you have three speakers at the front (left, center, right), two at the back or sides for effects, and one subwoofer for low bass. The AV receiver sits at the heart of it, handling video inputs and powering the speakers.

This setup lets you hear dialogue clearly from the center, effects around you from the other speakers and weighty impact from the subwoofer. Compared with TV speakers, even an entry level 5.1 layout adds clarity, space and excitement at everyday volumes.

Planning the layout in a real living room

Start by deciding where people usually sit. Your main seat should face the TV and center speaker. Try to keep that seat fairly central instead of pushed into a corner, otherwise one side will feel louder than the other.

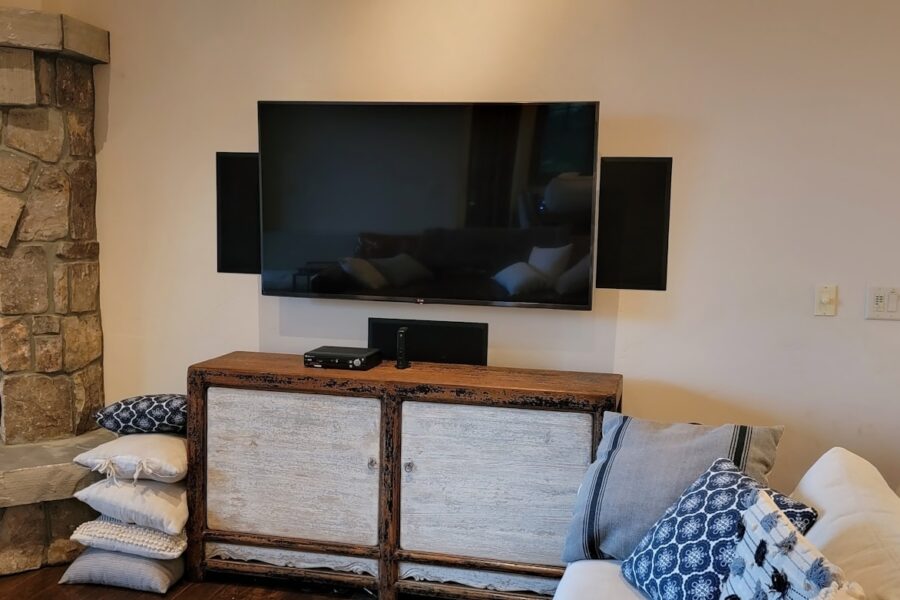

The center speaker should go directly under or above the screen, angled toward ear height. The front left and right speakers should sit on either side of the TV, roughly as far apart as they are from your main seat, forming a gentle arc toward you.

Positioning the surround speakers without ruining the room

Surround speakers work best slightly to the side and just behind your main seating position, at or a bit above ear height. In many homes this means either on small wall brackets or on slim stands behind the sofa.

If the sofa is right against the wall, place the surrounds a little wider than the ends of the sofa and slightly above head height. Angle them toward the listening area rather than firing flat across the wall.

Finding a good spot for the subwoofer

The subwoofer is less picky about exact left or right placement, but the room affects bass a lot. A common starting point is near the front stage, slightly to the left or right of the TV, a bit away from corners.

If bass feels too boomy in some spots and weak in others, move the subwoofer 20 to 30 centimeters at a time and listen again. Even small changes along the front wall can make the low end more even across the sofa.

Connecting the TV, console and media box

Connect your HDMI sources like a console, media box or Blu-ray player into the HDMI inputs on the AV receiver. Then connect a single HDMI output from the receiver to the TV input labelled ARC or eARC if available.

In the TV menu, set audio output to external receiver or ARC, and disable TV speakers. On the receiver, assign inputs with clear names like “Console” or “TV box” so anyone can pick them from the remote without guessing.

Running auto-calibration the right way

Most modern AV receivers include an auto setup tool with a small microphone. Place this mic at ear height where you usually sit, ideally on a tripod or a stack of stable books, then follow the on-screen instructions.

Stay quiet during the test tones. When it finishes, check the detected speaker sizes and distances. Distances should be close to real measurements, and any speakers listed as “Large” in a small room can often be changed to “Small” so the subwoofer handles deep bass more efficiently.

Basic settings that make a big difference

Turn on dynamic range compression or “night mode” only if you watch very late with others sleeping. For normal viewing, leaving this off gives more impact and clarity. If dialogue is still hard to hear, raise the center channel level by 1 or 2 decibels in the receiver menu.

Use the standard modes like “Dolby Digital,” “Dolby Surround” or “DTS Neural:X” rather than gimmicky stadium or concert effects. These default modes respect the original mix and keep dialogue anchored to the screen.

Keeping it family friendly and easy to use

An AV receiver can look complicated, but you can hide most of that from daily use. Save input shortcuts on the remote, label them clearly and consider enabling HDMI-CEC so turning on the console also wakes the TV and receiver.

If different family members prefer different volumes, show them how to use one main volume control, preferably the receiver volume. This keeps levels consistent and avoids confusion between TV and receiver controls.

Small upgrades that help over time

Once everything works reliably, you can think about small improvements. Thicker speaker wire is rarely urgent in a short living room run, but better speaker placement and re-running calibration after furniture moves can greatly improve the experience.

Adding simple soft furnishings like a rug in front of the sofa or curtains across a bare window can reduce harsh reflections and make movie nights feel more relaxed without changing any equipment.
