How to build an easy Dolby Atmos-style sound setup at home without remodeling

Many people hear about Dolby Atmos and imagine complicated ceilings full of speakers and cables. In reality, you can get a convincing height effect in a normal room with just a few smart choices and a bit of planning.

This guide explains what creates that “sound above you” feeling, which gear options exist, and how to place and adjust everything so it works well in a typical home without structural changes.

What Dolby Atmos actually adds

Traditional surround treats sound as fixed channels like left, right and rear. Atmos and similar formats treat sound as objects that can move vertically and horizontally around you. Your equipment then decides how to best play those objects in your room.

You do not always need a full cinema layout to benefit from this approach. If your gear supports Atmos or a similar height format and your speakers are placed sensibly, you will hear more precise movement and a more open soundstage.

Three main ways to get height effects at home

There are three common approaches for adding height without rebuilding a room. Each trades realism, cost and complexity differently, so you can pick what matches your space and budget.

• Atmos soundbar with up-firing drivers:A single bar sits under your TV and uses angled speakers to bounce sound off the ceiling so it seems to come from above.
• Up-firing add-on speakers:Separate speakers sit on top of or near your front speakers and also bounce sound off the ceiling, used with an AV receiver.
• On-wall or high front speakers:Height speakers mounted high on the front wall, tilted toward the listening position, used when ceiling bounce does not work well.

Checking that your room is suitable

Before buying hardware, look at your room. Ceiling type and height matter a lot for bounced height sound. A flat, fairly low and reflective ceiling usually gives the best results with up-firing designs.

As a simple rule, a ceiling between about 2.3 and 3 meters high, reasonably flat, and not covered with deep acoustic panels tends to work. Sloped ceilings, exposed beams or very high vaults make reflection-based systems less convincing, so wall-mounted height speakers may be better there.

Choosing between a soundbar and separate speakers

An Atmos-capable soundbar is usually the most compact option. It combines left, center and right channels, and sometimes rear and subwoofer units. Look for clear height channel labeling, HDMI inputs with support for audio return, and room calibration features if possible.

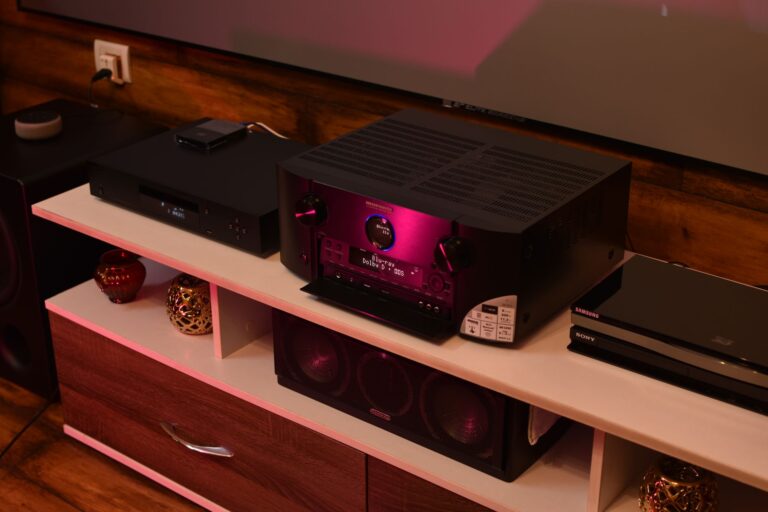

If you already have an AV receiver and front speakers, adding matched up-firing or height speakers can be more flexible. Check that your receiver supports Atmos or a similar height format and has enough amplified channels for the desired layout, such as 5.1.2.

Basic placement for Atmos soundbars

Place the soundbar centered under the screen, with its up-firing drivers unobstructed. They should have a clear path to the ceiling, so avoid shelves that hang directly above the bar or deep TV stands that create overhangs.

Try to keep your seating roughly the same distance from the bar as the bar is from the TV wall. If you sit very far to one side, the height illusion will be weaker. Whenever possible, angle your seating so people face the bar directly.

Placement for up-firing and height speakers

If you use separate up-firing speakers, place them on top of your front left and right speakers or on stands close to them. The front edge should be near the front edge of the speaker or stand so they “see” the ceiling clearly.

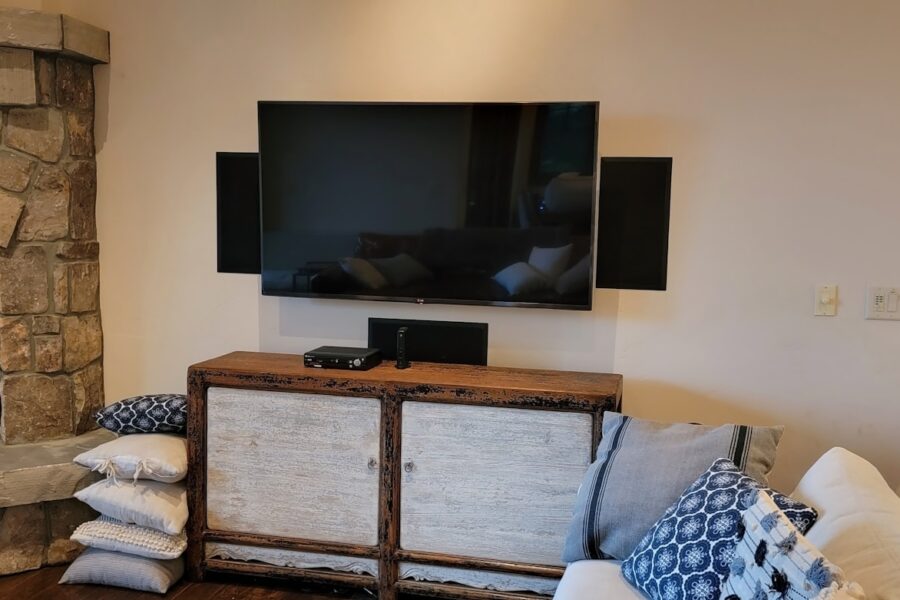

For wall-mounted height speakers, position them high on the front wall above the main left and right, angled down toward the listening position. Try to keep angles similar for both sides and avoid placing one speaker much higher or further away than the other.

Connecting and enabling height channels

When using an AV receiver, follow its speaker terminal labels, usually marked as “Height 1,” “Top Front” or similar. Run standard speaker cable of suitable thickness, and keep left and right runs similar in length to avoid large differences in resistance.

In the receiver’s setup menu, select the correct speaker type. Many receivers have presets like “Dolby Enabled SP” for up-firing units or “Front Height” for wall-mounted speakers. Using the match that fits your hardware helps the receiver choose proper decoding and timing.

Running calibration and doing fine adjustments

Most modern receivers and some high-end soundbars include automatic calibration tools that use a small microphone. Follow the on-screen steps carefully, and run the test from your main seating spot or a few key positions if the system allows.

After calibration, listen to familiar content with clear overhead cues, such as rainfall or aircraft. If height effects seem too quiet or too loud, manually adjust the height channel level in small steps, such as 1 decibel at a time, until it feels natural but noticeable.

Improving results without buying more gear

Small room tweaks can help any Atmos-style setup. Thick curtains or large bookshelves at the sides can tame harsh reflections, while keeping the ceiling relatively reflective helps up-firing speakers do their job.

Try to keep big, reflective coffee tables away from the middle between you and the front speakers, since strong early reflections from that surface can blur direction cues. A soft rug in front of the seating is often an easy upgrade.

Making content easier to find and enjoy

Many services label content that includes Atmos or similar height formats. When possible, select the highest quality track within the app or playback menu, and make sure your playback device is set to output bitstream or pass-through so the soundbar or receiver can decode it.

Save a few favorite test scenes that clearly move sound vertically, such as thunderstorms or city ambience, and return to them after any changes. This makes it easier to tell whether your adjustments are actually improving the experience.

When a simple upgrade is enough

If your room has a very high or irregular ceiling, or you cannot place extra speakers, a well-chosen virtual surround soundbar that simulates height may still provide a more spacious effect than basic stereo.

The key is to work with your room instead of against it, choose gear that fits your space, and spend a bit of time on placement and calibration. That combination often matters more than chasing the most complex possible layout.
